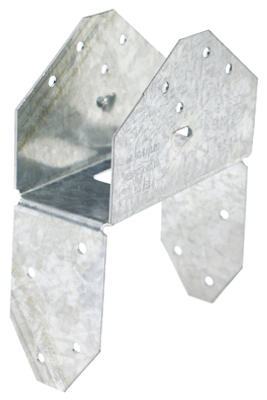

  • Saddle Raft Tie

  • SIMPSON STRONG TIE
  • 4.65 ea.

  • Related Items

  • HS24
    121600
    044315694202
  •
  • HS24, Saddle Raft Tie, Double Shear Nailing Allows For Higher Lateral Resistance, Attaches To Bottom Chord Of A Truss Or Rafter At Pitches From 0:12 To 4:12 To Double 2 x 4 Top Plates, Installs With Eight 8D x One 1/2" & Two 8D Slant Nails To Rafters & Eight 8D Nails To Plates.
    HS24, Saddle Raft Tie, Double Shear Nailing Allows For Higher Lateral Resistance, Attaches To Bottom Chord Of A Truss Or Rafter At Pitches From 0:12 To 4:12 To Double 2 x 4 Top Plates, Installs With Eight 8D x One 1/2" & Two 8D Slant Nails To Rafters & Eight 8D Nails To Plates. The H connector series provides wind and seismic ties for trusses and rafters. This product was designed to help resist uplift forces.
    • The HS24 attaches the bottom chord of a truss or rafter at pitches from 0:12 to 4:12 to double 2 x 4 top plates.
    • Double shear nailing allows for higher lateral resistance.
    • galvanized for extra corrosion resistance.
    • Installs with 8-8d x 1 1/2 & 2-8d slant nails to rafters and 8-8d nails to plates.
    US
    4.90
    2.00
    3.63
    21.37
    8.37
    6.75
